N-Tri Banner Series

SKU 01-1-1

Designed for modern commercial display and events, the Tri-Fold Banner brings an innovative visual experience. With its foldable structure, dual-sided viewing, and intelligent control system, it blends versatility with elegance in one compact design.

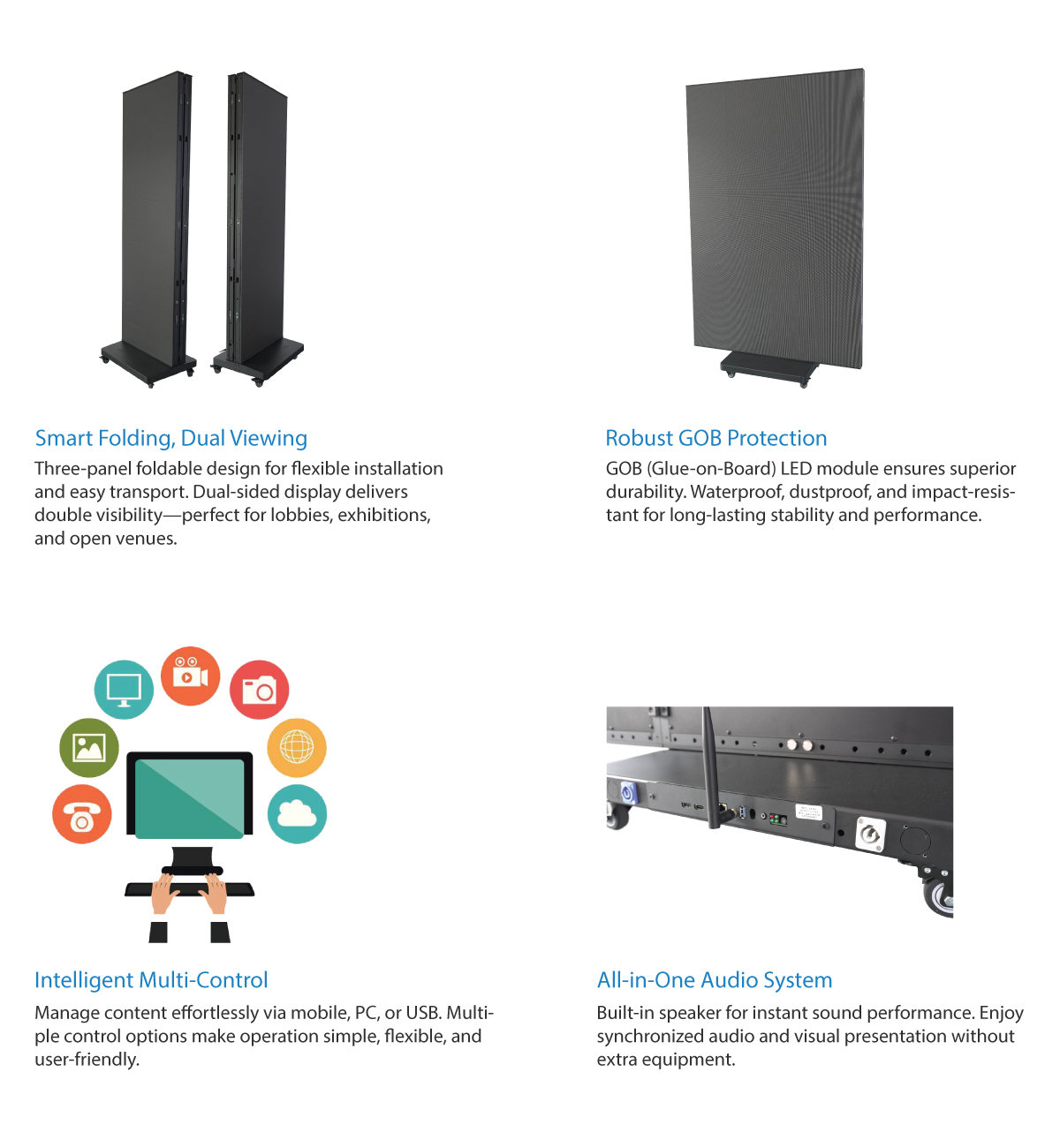

 Feature

Specification

Model N-Tri Banner-1.5 N-Tri Banner-1.8 N-Banner-2.5
Physical Pitch 1.53mm/0.07“ 1.86mm/0.1” 2.5mm/0.12“
Pixel Configuration SMD1212 SMD1515 SMD2020
Pixel Density 422753px/m2 289050px/m2 160000px/m2
Module Dimension(WxH) 320x160mm/ 9.84″x9.84″ 320x160mm/ 9.84″x9.84″ 320x160mm/ 9.84″x9.84″
Panel Dimension(WxHxD) 640×1920 Folded/1280 x1920 unfolded 640x1920Folded/1280 x1920 unfolded 640×1920 Folded/1280 x1920 unfolded
Module Resolution 208x104px 172x86px 128x64px
Panel Resolution(folded) 416x1248px 344x1032px 256x768px
Panel Resolution(unfolded) 832x1248px 688x1032px 512x768px
Panel Material Aluminum profile Aluminum profile Aluminum profile
Panel Weight 48kg(105.82Ibs) 48kg(105.82Ibs) 48kg(105.82Ibs)
Gray Scale 13~16bit 13~16bit 13~16bit
Contrast Ratio 4000:1 4000:1 4000:1
Avg.
Power Consumption		 400w/panel 400w/panel 400w/panel
Max.
Power Consumption		 1200w/panel 1200w/panel 1200w/panel
Minium Viewing Distance >1.9m >2.2m >3.1m
Operating
Temp/Humidity		 -20°C – 60°C / 10% – 90% -20°C – 60°C / 10% – 90% -20°C – 60°C / 10% – 90%
Storage
Temp/Humidity		 -30°C – 60°C / 10% – 90% -30°C – 60°C / 10% – 90% -30°C – 60°C / 10% – 90%
Refresh Rate 3840hz 3840hz 3840hz
Brightness 600~800nits 600~800nits 600~800nits
Viewing Angle
(H/V)		 160°/160° 160°/160° 160°/160°
Service Rear Rear Rear
Expected Lifetime 100,000hrs 100,000hrs 100,000hrs
IP Rating
(Front/Rear)		 IP31 IP31 IP31
Certification CCC,CE,ETL,RoHS CCC,CE,ETL,RoHS CCC,CE,ETL,RoHS
