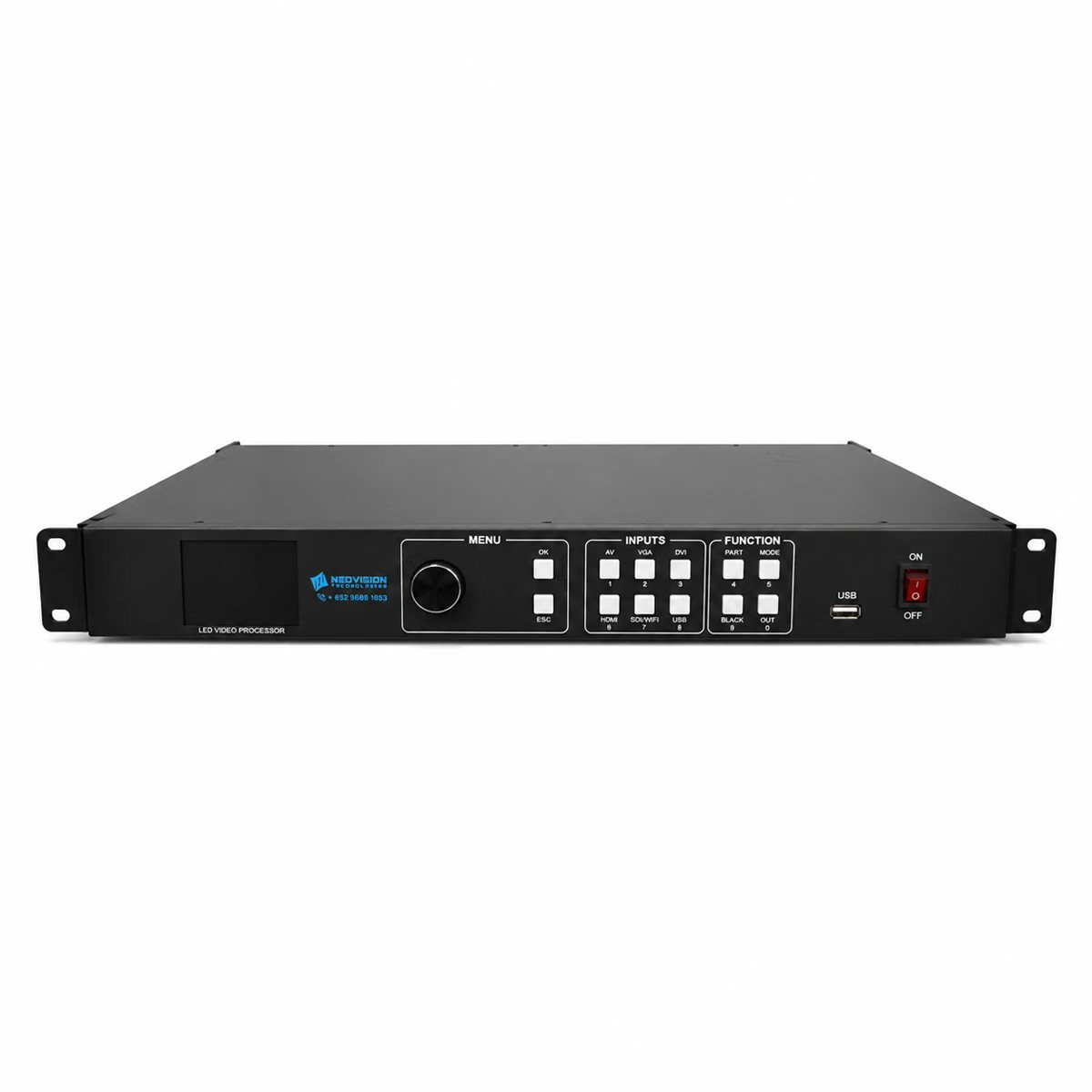

NEO300 is a seamless effect switching video processor that supports digital HD input, analog HD input, analog SD input, and audio input for simultaneous audio and video output on all
channels.
The following lists the audio and video input format tables supported by the LED video processor:
DVI Input Support VESA Standard, Max 1920×1080@60Hz
HDMI Input 480i/p 676i/p 720p 1080i/p Color Depth 8/10/12 Bit
VGA Input Support VESA Standard, Max 1920×1080@60Hz
Composite Video Input PAL、NTSC、PAL-M/N、SECAM
Analog Audio Input Analog Audio Signal
Output Format:
DVI Output Any Resolution, Max 1920×1080@60Hz
Custom Resolution Output
Analog Audio Output Any Channel Analog Audio Signal
Multiple Video Input——NEO300 uses 5/6 channels of video input, including 1 AV composite
video, 1 VGA, 1 DVI, 1 HDMI, 1 USB. 1 SDI/1WiFi（Expanding）, Basically the needs for civil
and industrial use have been covered. All video input switching can be seamlessly switched.
Output Interface——NEO300 video processor has 2 video outputs, 2 video outputs use 2 DVI
output connectors, which are programmed output to the LED sending card or display.
Seamless Switching Of Any Channel——The NEO300 video processor can also seamlessly
switch between any channels.
Output Resolution——NEO300 has designed a number of practical output resolutions for
users width 1920 points and high 1280 points. Applicable to a variety of dot matrix displays.
Multi to 10 sort output resolutions for user selection and adjustment to point-to-point output.
Mode Save Function——NEO300 uses 10 sets of user presets. Each set of user presets can
store all user setting parameters, which can implement parameter backup and field calling
functions (but need to enter the system menu calling).
Instant Storage Technology——The instant storage technology solves the user’s cumber
some setup and manual storage process, that is, the user does not need to perform manual
save operation after adjusting or adjusting the parameters, and the NEO300 automatically
stores the user parameters in the EEPROM, even after powering off, The parameters before
the power failure remain in the device.
