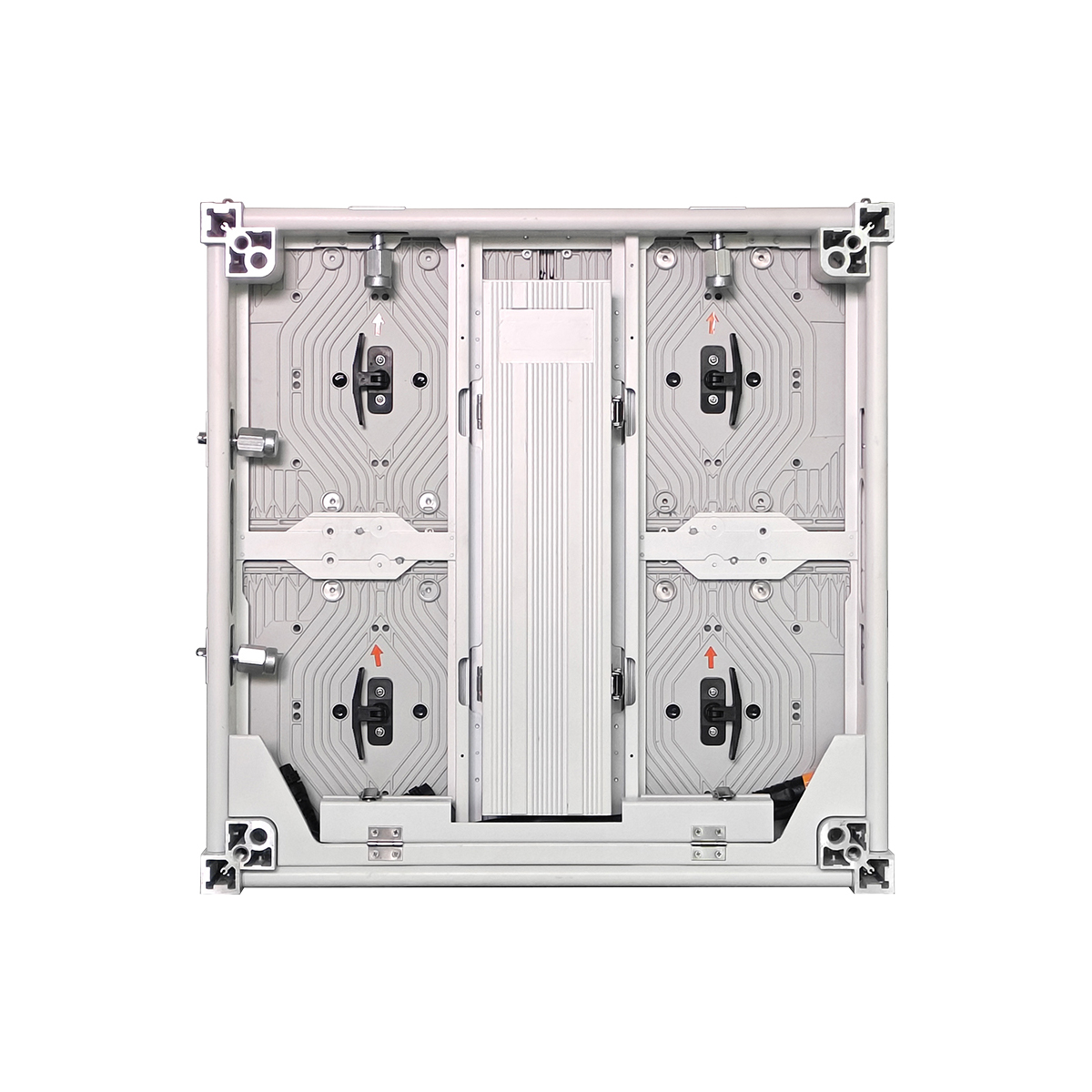

N-FU Series

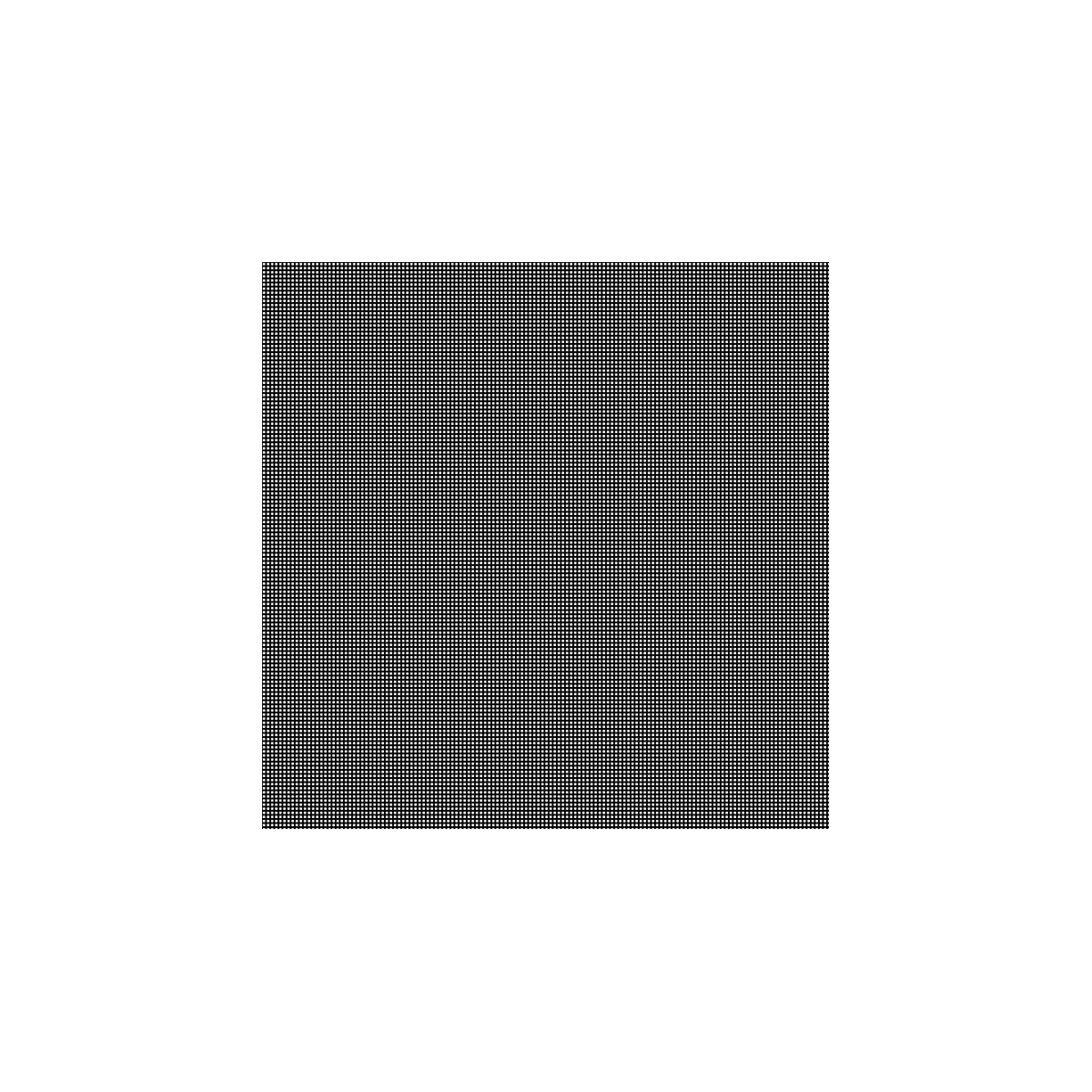

N-FU Series - Image 2

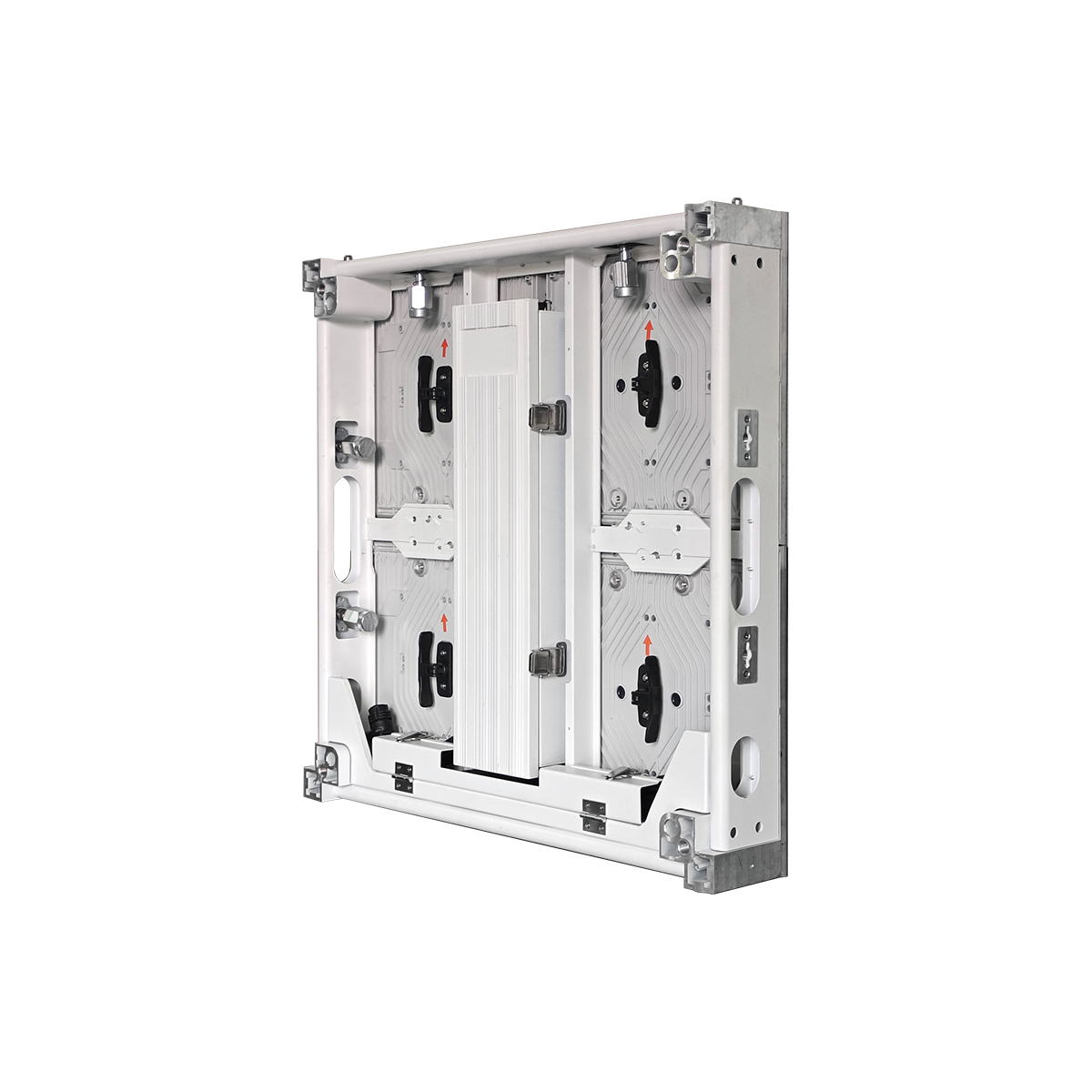

N-FU Series - Image 3

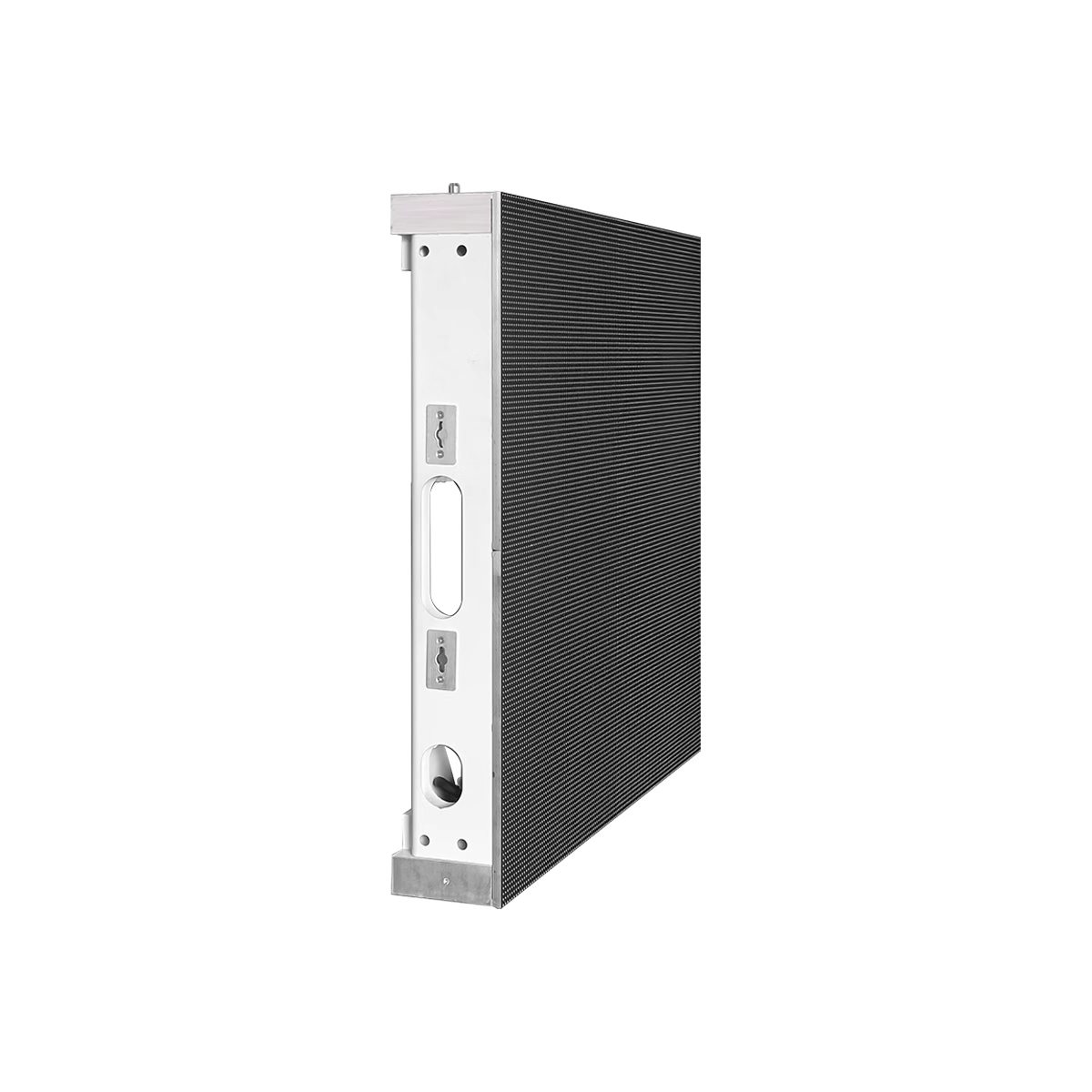

N-FU Series - Image 4

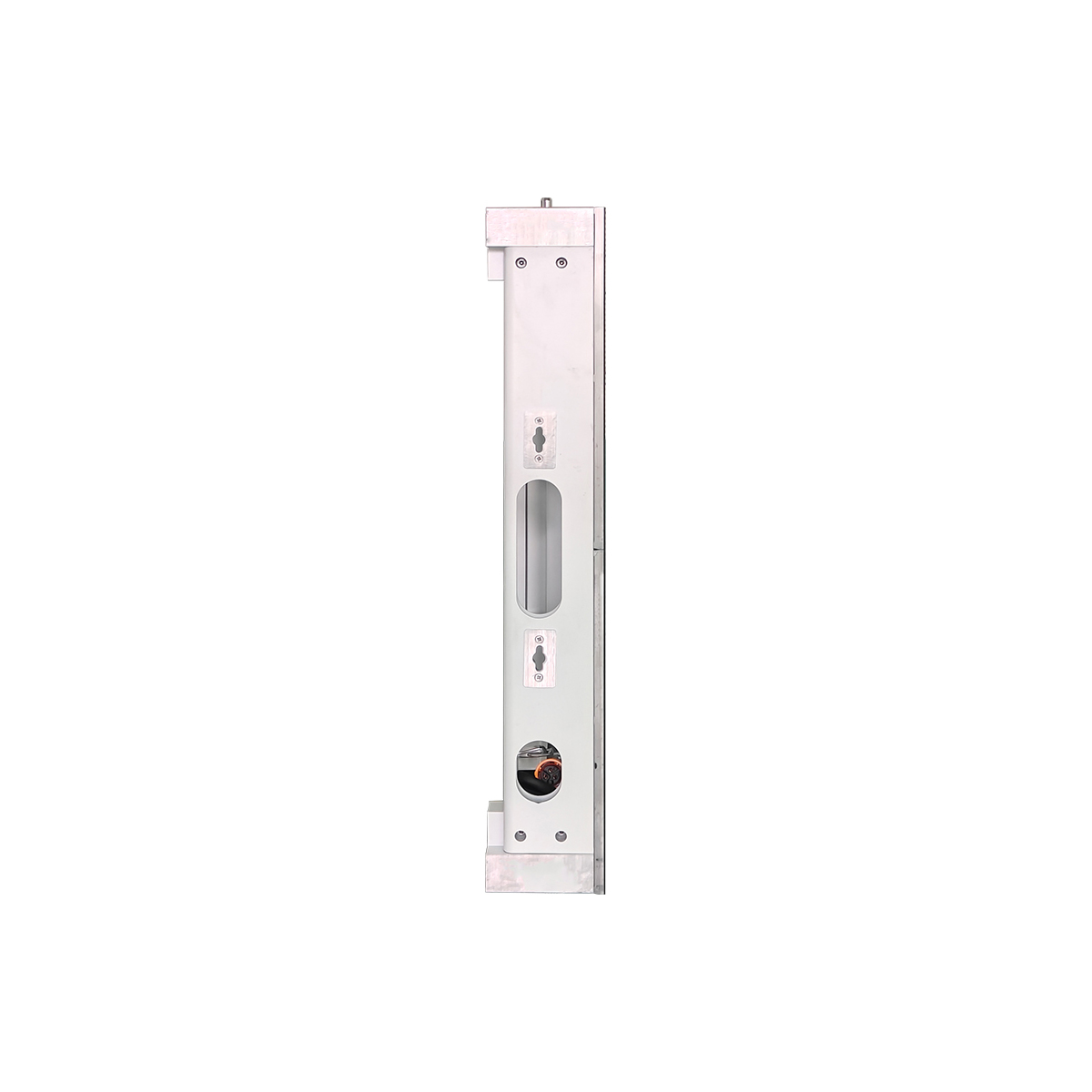

N-FU Series - Image 5

N-FU Series

SKU 02-1-2

The N-FU series outdoor fixed-installation panels deliver a refresh rate of 3840Hz, a contrast ratio of up to 5000:1, and 16-bit+ grayscale, ensuring vivid, fine, and lifelike image quality with stable, uniform performance that is easy on the eyes and free from graininess.

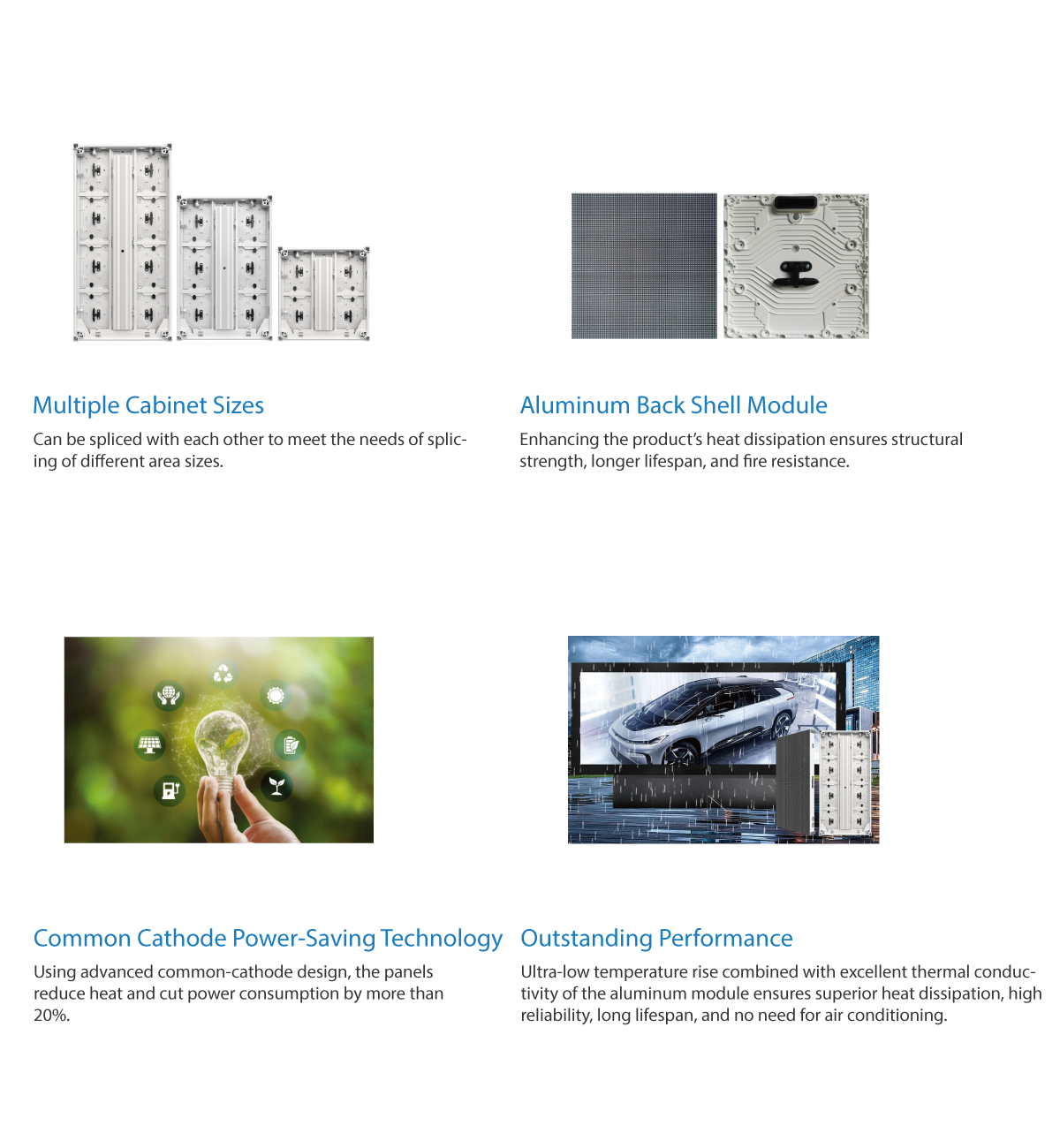

Feature



Specification



Model N-FU-1.95 N-FU-2.6 N-FU-2.97 N-FU-3.91 N-FU-4.81
Physical Pitch 1.95mm/0.07“ 2.6mm/0.102” 2.97mm/0.12“ 3.91mm/0.15“ 4.81mm/0.19”
Pixel Configuration SMD1415 SMD1415 SMD1415  SMD1415  SMD1921
Pixel Density 262144px/m2 147456px/m2 112896px/m2 65536px/m2 43264px/m2
Module Dimension(WxH) 250x250x19mm / 9.84″x9.84”x0.74″ 250x250x19mm / 9.84″x9.84”x0.74″ 250x250x19mm / 9.84″x9.84”x0.74″ 250x250x19mm / 9.84″x9.84”x0.74″ 250x250x19mm / 9.84″x9.84”x0.74″
Panel Dimension(WxHxD) 500x1000x57mm(19.68″x39.37″x3.34″) 500x1000x57mm(19.68″x39.37″x3.34″) 500x1000x57mm(19.68″x39.37″x3.34″)  500x1000x57mm(19.68″x39.37″x3.34″)  500x1000x57mm(19.68″x39.37″x3.34″)
No. of Module/panel(WxH) 2×4 2×4 2×4 2×4 2×4
Module Resolution 128x128px 96x96px 84x84px 64x64px 52x52px
Panel Resolution 256x512px 192x384px 168x336px 128x256px 104x208px
Panel Material Aluminum Profile Aluminum Profile Aluminum Profile Aluminum Profile Aluminum Profile
Panel Weight 16kg (35.27lbs) 16kg (35.27lbs) 16kg (35.27lbs) 16kg (35.27lbs) 16kg (35.27lbs)
Gray Scale 14bit 16bit 16bit 16bit 16bit
Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1
Avg. Power Consumption 235w/panel 235w/panel 235w/panel 268w/panel 268w/panel
Max. Power Consumption 700w/panel 700w/panel 700w/panel 800w/panel 800w/panel
Operating Temp/Humidity -10°C – 50°C / 10% – 98% -10°C – 50°C / 10% – 98% -10°C – 50°C / 10% – 98% -10°C – 50°C / 10% – 98% -10°C – 50°C / 10% – 98%
Storage Temp/Humidity -20°C – 50°C / 10% – 98% -20°C – 50°C / 10% – 98% -20°C – 50°C / 10% – 98% -20°C – 50°C / 10% – 98% -20°C – 50°C / 10% – 98%
Refresh Rate 3840hz 3840hz 3840hz 3840hz 3840hz
Brightness   ≥4500nits  ≥5000nits ≥5000nits ≥5000nits ≥5000nits
Viewing Angle(H/V) 160°/120° 160°/120° 160°/120° 160°/120° 160°/120°
Expected Lifetime 100,000hrs 100,000hrs 100,000hrs 100,000hrs 100,000hrs
Service Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating(Front/Rear)  IP66 IP66 IP66 IP66 IP66
Certification CCC,CE,ETL,RoHS CCC,CE,ETL,RoHS CCC,CE,ETL,RoHS CCC,CE,ETL,RoHS CCC,CE,ETL,RoHS
